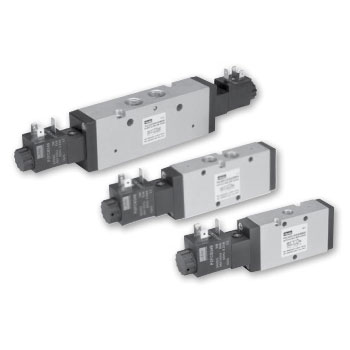

Parker Viking Lite Series

Parker Viking Lite Series are a solenoid air piloted valves used in general inline industrial applications. These valves do not require lubrication, but they can also be used in systems that are lubricated.

Operating Information


Operating pressure minimum: 145 PSIG (10 bar)
Operating temperature: 14°F to 122°F (-10°C to 50°C)

Technical Specs

Ports:

  • P2LAZ: 1/8 inch NPT & BSPP, Cv = 0.6
  • P2LBZ: 1/4 inch NPT & BSPP, Cv = 1.5
  • P2LCZ: 3/8 inch NPT & BSPP, Cv = 2.5

Mounting:

  • Inline
  • IEM bar manifold

Solenoids:

  • 2.5 watts
  • 22mm, 3-pin (DIN 43650)
  • 24VDC and 120VAC

Certification / approval:

  • IP65 Rated, RoHS, CE
Order Now

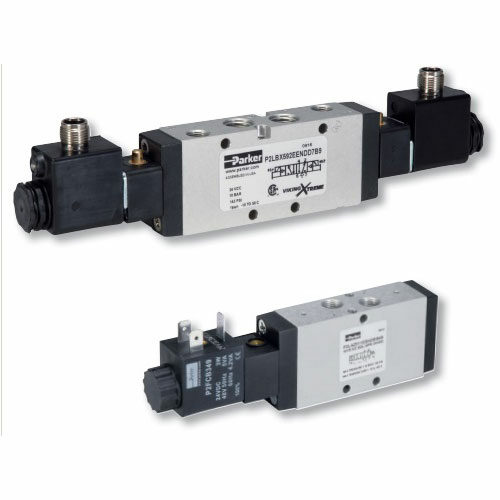

Parker Viking Xtreme Series

Parker Viking Xtreme Series air vales are designed for harsh industrial environments. This heavy-duty solenoid air piloted valve has mobile rated coils and is salt spray & vibration resistant. Bar manifold options available. It is rated for -40F to 140F and pressure Vac. to 232 PSIG. Port sizes: 1/8 to 1/2.

Operating information


Pressure Rating:
Vacuum to 232 PSIG (Vacuum to 16 bar)
Operating temperature: -40 to +60°C, -40 to 140°F
Port Type:
BSPP, NPT
Input Voltage:
12, 24 VDC | 12, 24, 120, 240 VAC
Power Consumption:
2.5W to 7.3W
Media:
 Air

Technical Specs

Features:

  • P2LAX: 1/8 inch NPT & BSPP
  • P2LBX: 1/4 inch NPT & BSPP
  • P2LCX: 3/8 inch NPT & BSPP
  • P2LDX: 1/2 inch NPT & BSPP

Solenoids:

  • 1.2 watts to 7.3 watts
  • 22mm (Type B) & 30mm 3-pin (DIN 43650)
  • 15mm 3-pin (EN 17530-803)
  • M12, 4-pin, surge suppression
  • Grommet, surge suppression
  • Conduit
  • Deutsche Connectors, surge suppression
  • 12VDC to 240VAC

Mounting:

  • Inline
  • IEM aluminum bar

Features:


  • Tested to +5g shock and vibration
  • Solenoids operate with wide voltage tolerance bands
  • Corrosion-resistant design
  • Passed 500-hour salt spray test
Order Now

Parker B Series

Parker B Series is an industrial compact size valve with an enhanced flow range. This valve series is available in solenoid pilot operated and remote air pilot models. It features WCS (Wear Compensating Seal) system to assure long life and fast response

Operating Information


Operating pressure minimum: Vacuum to 145 PSIG (Vacuum to 10 bar)
Operating temperature: 5°F to 120°F (-15°C to 49°C)

Technical Specs

Ports:

  • B3: 1/8, 1/4 inch
  • B5: 1/4, 3/8 inch
  • B6: 3/8 inch
  • B7: 1/2 inch
  • B8: 3/4 inch

Mounting:

  • Inline
  • Subbase
  • IEM stackable base
  • IEM aluminum bar
  • 5-port subbase aluminum bar

Solenoids:

  • 1.2 W – 15mm, 3-pin EN175301-803
  • 2.5 to 7.3 watt – conduit, grommet, 22mm & 30mm, 3-pin DIN (433650)
  • 3-pin DIN (433650) 12VDC to 240VAC
  • Female DIN electrical connectors

Certification / Approval:

  • Approved to be CE marked
  • IP65 rated
  • CSA, C/US

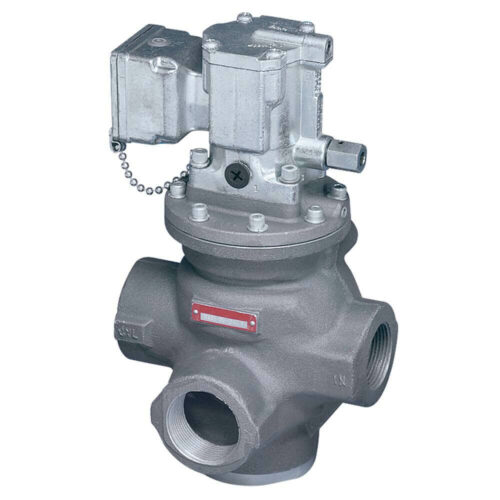

Parker N Series

Parker N Series valve is a 2 – and 3 Way high flow poppet valve designed for general and heavy industrial applications. Parker used short stoke poppets to improve the response time and to provide immediate flow. Port sizes: 3/8 to 1 1/2.

Operating Information


Operating pressure minimum: Vac to 250 PSIG
Operating temperature: 0F to 200F

Technical Specs

Mounting Type:

  • Inline

Port Size:

  • 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″

Port Type:

  • BSPP, NPT

Minimum Flow Rate:

  • 3Cv

Maximum Flow Rate

  • 30 Cv

Input Voltage

  • 6 to 120VDC, 24 to 240 VAC

Electrical Connection

  • 1/2″ conduit with or without junction box | 3-Pin & 5-Pin “Mini” | 4-Pin “Micro” M12
