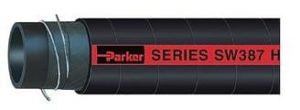

Parker SW387 Hot Tar and Asphalt Hose

Parker SW387 Hot Tar and Asphalt Hose, also called Wildcatter Oilfield Hot Tar Hose, is used to transfer hot oil and tar in applications to 350°F and 150 psi.

The hose construction is designed using a dual wire helix that provides full suction capability, kink resistance, and a path to conduct a static electrical charge to ground. The cover is resistant to abrasion, heat, oil, and weathering.

Check SW387 hose specifications below:

Parker SW387 Series Hot Tar and Asphalt Hose Specifications

  • Tube: Black nitrile
  • Hose reinforcement material: 2 textile plies with dual wire helix
  • Hose Inside Diameter: 101.6 to 152.4 mm, 4 to 6 inch
  • Hose Outside Diameter: 114.3 to 166.6 mm, 4.50 to 6.56 inch
  • Temp Range: -40°F to +350°F
  • Maximum Operating Pressure: 1 MPa, 150 psi, 10.3 bar
  • Hose pressure rating: 29 Inch-Hg, 737 mm-Hg, Full
  • Application: Material Handling
  • Media: Abrasive Materials
  • Hose ID: -64 to -96
  • Weight: 0.14 to 0.50 kg/m, 0.98 to 3.6 lb/ft, 0.98 to 3.60 lb, 0.44 to 1.63 kg
  • Design factor: 4:1
  • Minimum bend radius: 6 to 18 inch, 152.4 to 457.2 mm
