Parker GST II | Parker Hose Series 7092 and 7093

Parker GST® II hose series 7092 and 7093 are general-purpose air and water rubber hose rated for 212°F and 300 psi. It is used in air compressor and shop air hose systems as well as for the transfer of mild chemicals.

GST® II hose is rated for max 212°F and 300 psi.

The Hope Group is an authorized distributor for Parker hose including:

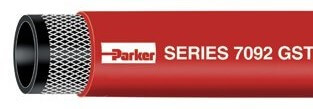

  • 7092 Series. General-purpose air and water hose (Red)
  • 7093 Series. General-purpose air and water hose (Black)

7092 and 7093 Series General-Purpose Air and Water Hose

Parker hose series 7092 (Red) and series 7093 (Black) are designed to be used to transfer air, water and mild chemicals. They feature abrasion-, heat-, and ozone-resistant cover and are available in multiple colors for easy color identification.

Applications:

7092 and 7093 Series hoses are intended to be used in various applications including agriculture, construction and general industrial.

Check technical specifications below:

  • Tube: Red EPDM (7092); Black EPDM (7093)
  • Reinforcement: Two or four textile plies
  • Specifications met: ARPM Class C Tube
  • Temp Range: -20°F to +212°F
  • Max. Operating Pressure: 1.4 to 2.1 MPa, 200 to 300 psi, 13.8 to 20.7 bar
  • Application: Air & Multipurpose
  • Media: Various
  • Hose I.D.: Sizes -3 to -32
  • Minimum Bend Radius: 2.0 to 14.0 inch, 50.8 to 355.6 mm

Air Hose Factory Assemblies, Series 7092

Parker hose series 7092 is available as pre-made 25 foot and 50 foot assemblies. GST II air hose factory assemblies transfer air for use in shops or powered air tools.

7092383-KAA
50′ x 3/8″ (Length x Hose I.D.)

7092383-KAB
25′ x 3/8″ (Length x Hose I.D.)

Technical specifications:

  • Cover color: Red
  • Media: Air
  • Temp Range: -40°F to +212°F
  • Max. Operating Pressure: 300 psi
  • Fitting material: Brass
  • Fitting type: Crimp
  • Connection 1 Size: Male Rigid 1/4″
  • Connection 2 Size: Male Rigid 1/4″
