ToughJacket Hose
Parflex TOUGHJACKET ™ hose covers are made with a specially-formulated polyurethane jacket that exceeds industry requirements for abrasion resistance by 650 times. The coefficient of friction is extremely low, which means there is less potential for damage to the outer cover.
ToughJacket ™ Hose Applications
- Medium pressure hydraulics
- Agricultural equipment
- Construction equipment
- Material Handling equipment
- Lift truck applications
TOUGHJACKET ™ Hose Characteristics:
- ToughJacket hose is lightweight. There is a 30-70% reduction in weight compared to competitive constructions.
- It’s flexible and the outside diameter is smaller. A 10-30% reduction in the O.D. allows for a tighter bend radius, which means easier routing.
- Continuous long lengths are available up to 750 feet.
- Low length change when under pressure. The length change for ToughJacket hose is 1-4%. The SAE acceptable change in length specification is +2% to -4%.Most hose lengths shrink at least 2% in a restricted environment, which can spell trouble for hose and cable tracks.
Parflex Hose with TOUGHJACKET ™ Covers

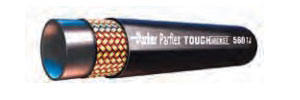

560TJ Hose – SAE J517 100R1AT
Twin or multi-line available. General hydraulic hose.
Available in dash sizes 3, 4, 5, 6, 8, 10 and 12.
Temperature Ranges:
- Petroleum based hydraulic fluids and lubricating oils within a temperature range -40°F (-40°C) to 250°F (121°C)
- Synthetic, synthetic blend, water, and water/oil emulsion hydraulic fluids limited to 185°F (85°C)
- Water/glycol hydraulic fluids limited to 135°F (57°C)
Vacuum Rating: 28 inch Hg
Change in length at Max. Working Pressure: +/-2%

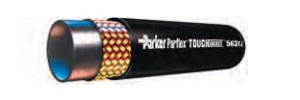

563TJ Hose – SAE J517 100R17
Lowest length change under pressure (+/- 1%).
Available in dash sizes 4, 6, 8, 10, 12 and 16. Length change for the 563TJ hydraulic hose is +/- 1%, so it is ideal for boom and cable track applications where long lengths are required. It’s also up to 42% lighter than comparable 100R17 hoses.
Temperature Ranges:
- Petroleum based hydraulic fluids and lubricating oils within a temperature range -40°F (-40°C) to 250°F (121°C)
- Synthetic, synthetic blend, water, and water/oil emulsion hydraulic fluids limited to 185°F (85°C)
- Water/glycol hydraulic fluids limited to 135°F (57°C)
Vacuum Rating: 28 inch Hg
Change in length at Max. Working Pressure:
Dash Size -4 to -8: +/-1%
Dash Size -10 to -16: +/-2%

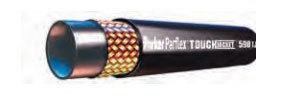

590TJ Hose
Two-wire strength, one wire construction for improved bend radius.
Available in dash sizes 4, 6, 8, 12 and 16. Low length change under pressure makes it ideal for boom and cable track applications where long lengths are required. Twin and multi-line configurations are available.
Temperature Ranges:
- Petroleum based hydraulic fluids and lubricating oils within a temperature range -40°F (-40°C) to 250°F (121°C)
- Synthetic, synthetic blend, water, and water/oil emulsion hydraulic fluids limited to 185°F (85°C)
- Water/glycol hydraulic fluids limited to 135°F (57°C)
Vacuum Rating: 28 inch Hg
Change in length at Max. Working Pressure: +/-2%

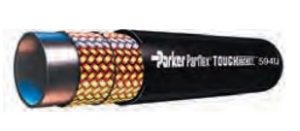

594TJ Hose
Four-spiral wire performance in a two-wire braid construction.
Available in dash sizes 4, 6, 8, 10 and 12.
Temperature Ranges:
- Petroleum based hydraulic fluids and lubricating oils within a temperature range -40°F (-40°C) to 212°F (100°C)
- Synthetic, synthetic blend, water, and water/oil emulsion hydraulic fluids limited to 185°F (85°C)
- Water/glycol hydraulic fluids limited to 135°F (57°C)
Vacuum Rating: 28 inch Hg
Change in length at Max. Working Pressure:
Dash sizes -4 to -10: +/-2%
Dash size -12: +2% to -4%
